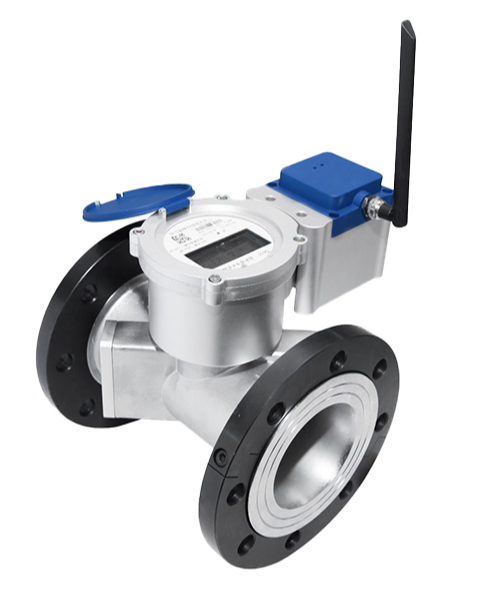

Bulk Ultrasonic Water Meter(HXW310-E)

DN50/65/80/100/125/150/200/250/300/

400/500/600

ZLINK LXC type bulk ultrasonic water meter is designed with high accuracy and a wide range of sizes, suitable for applications as key meters in water supply main network, DMA flow meter, industrial park, and agricultural irrigation. With healthy and durable materials, this meter is trustworthy for water measurement in industrial and agricultural processes, especially under harsh conditions. Combining with various IoT technologies, ZLNK bulk ultrasonic meter helps the operator enhance communication coverage and data collection across the water supply network, which paves the way towards intelligent water utility infrastructure and smart city.

Product Features

• Very wide measurement range of R500

• ≤10kpa pressure loss, save much energy for utilities

• Battery powered with lifetime of 10 years

• Protection level: IP68

• U0D0, H/V/Inclined

• Leakage detection and dry pipe detection

• Removable flange for easy installation

• Integrated with pressure detection (option)

• Vacuuming Electron cavity to prevent glass fogging

• Replaceable communication module
